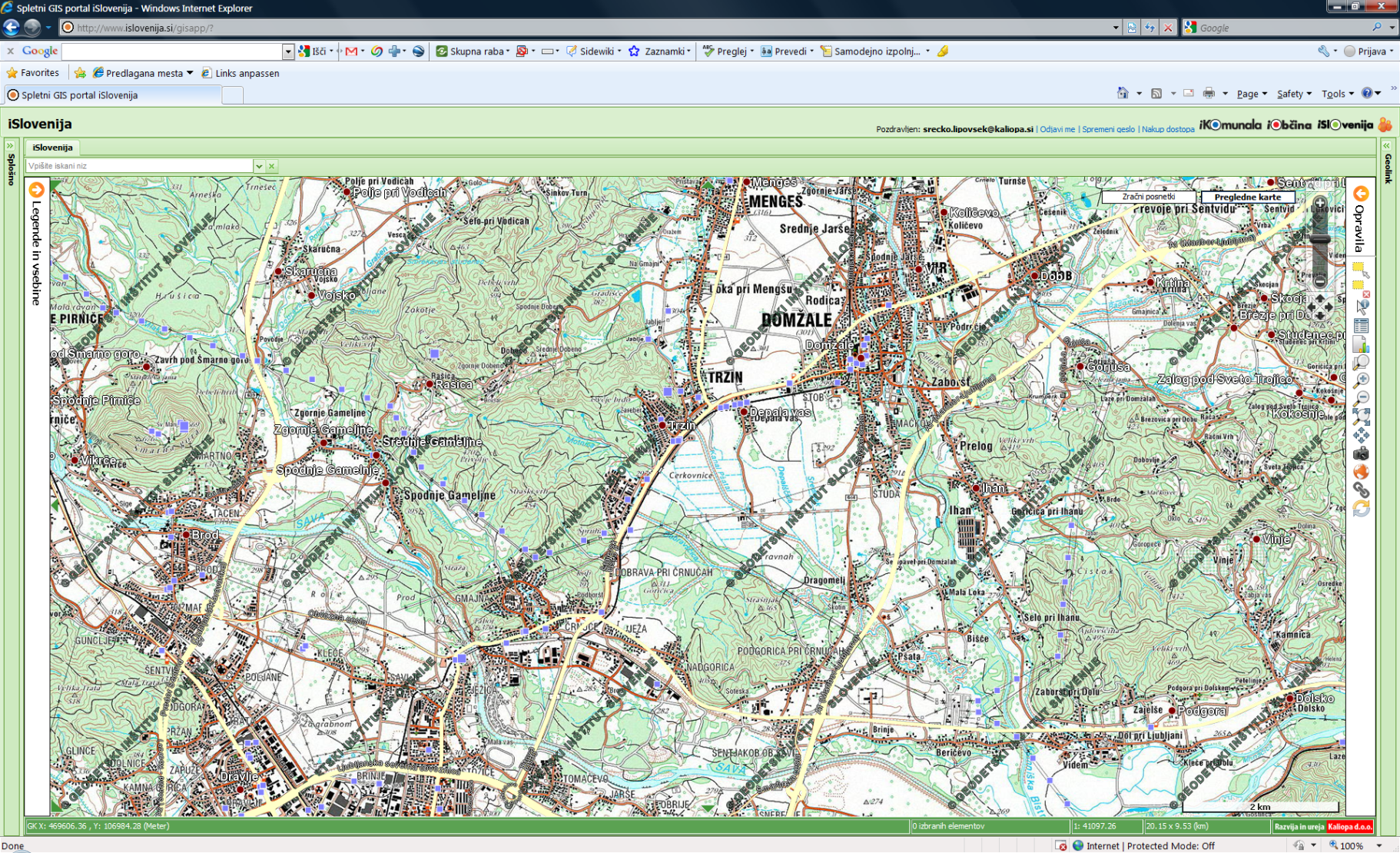

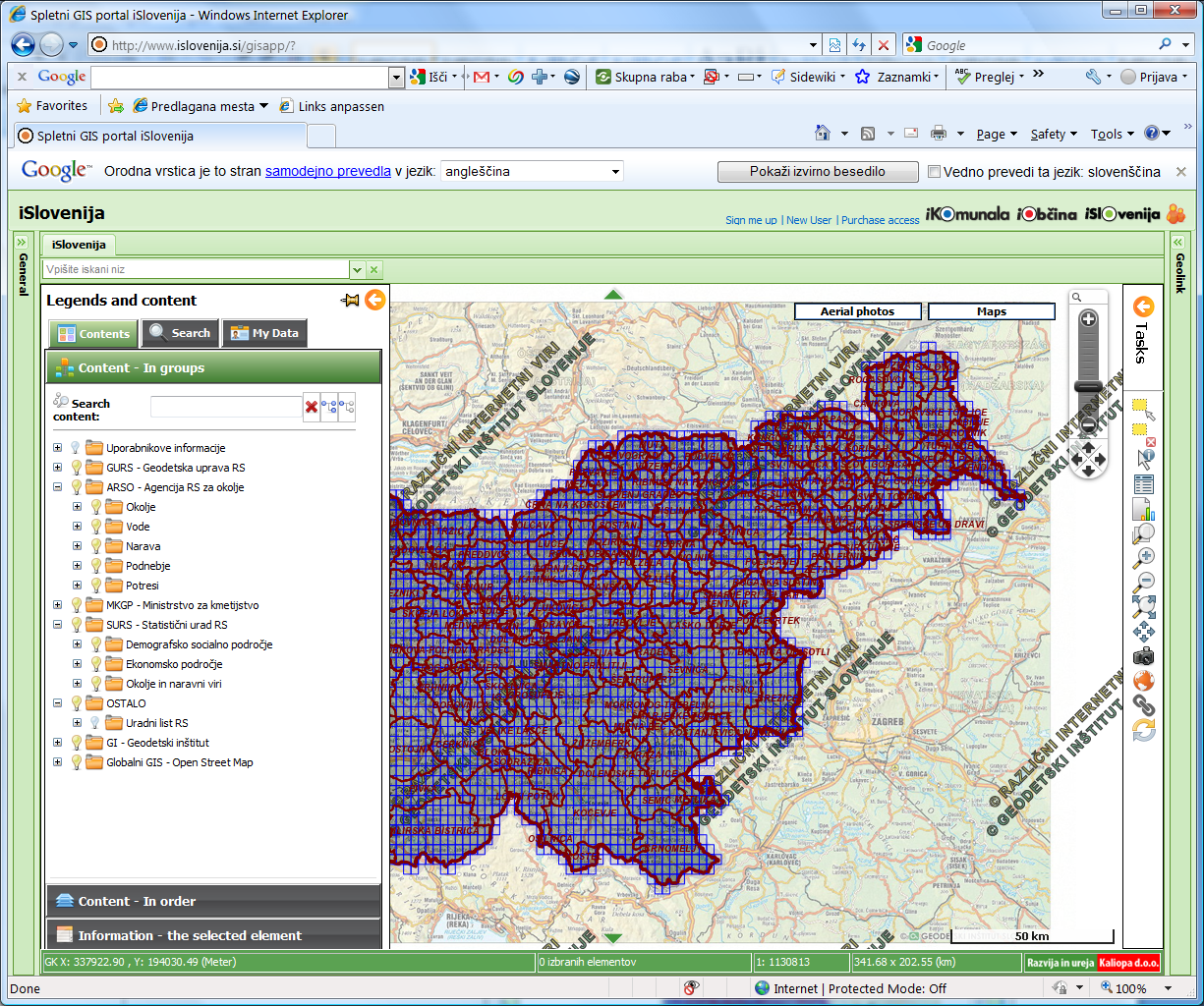

Implementing very, very fast ERDAS IWS (image web server) to show no-tiled raster layers in basic web layout (http://iws.erdas.com). Ability to:

• show many raster

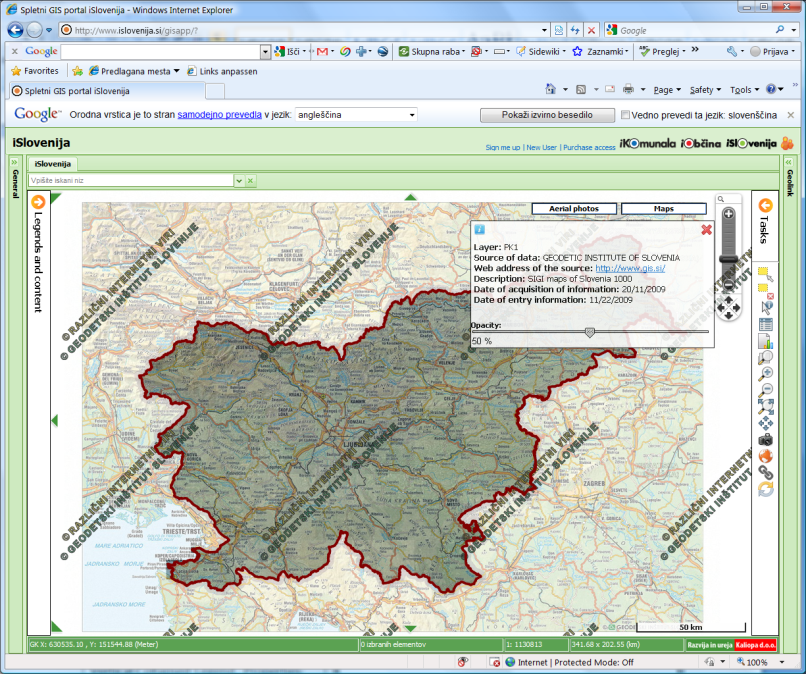

• make them dynamic transparent
• using “on the fly” algoritms like clip area,…
• without needs of pre-tiled data’s…

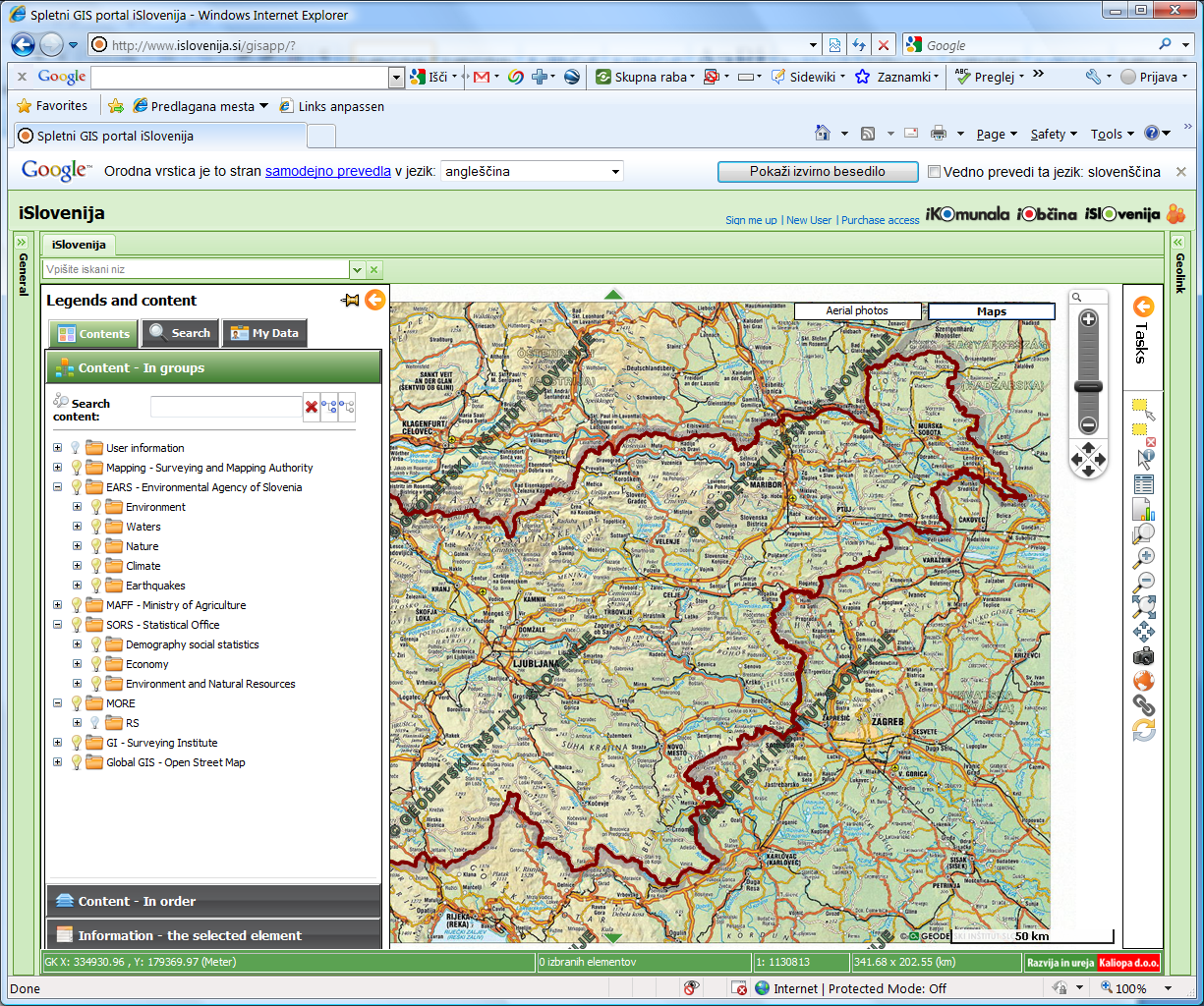

Using EXT JS Library for outer Application Layout and modified Mapguide Basic Layout for mapping.

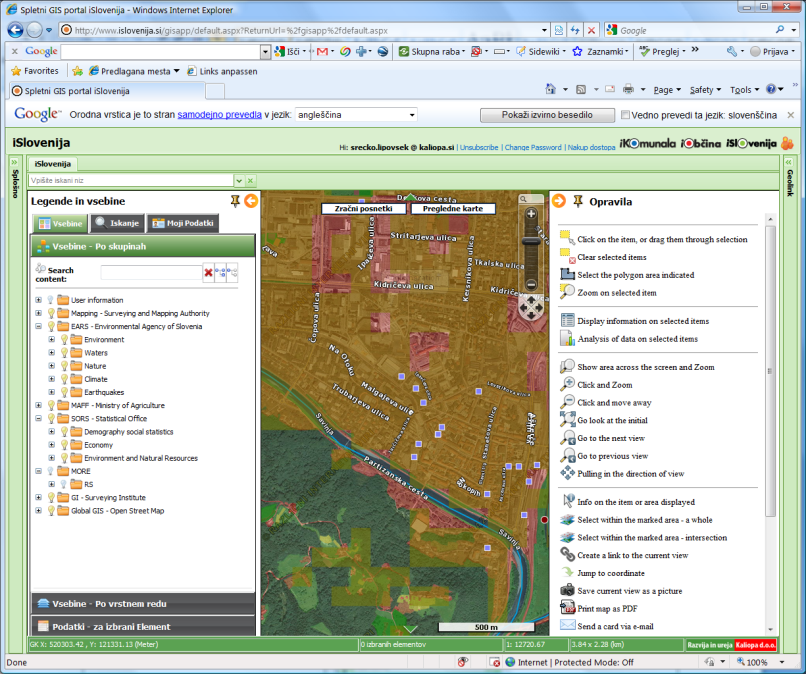

* Vertical Collapsed Legend, Properties and other panels … And also vertical collapsed toolbar

* Search Layers by Name

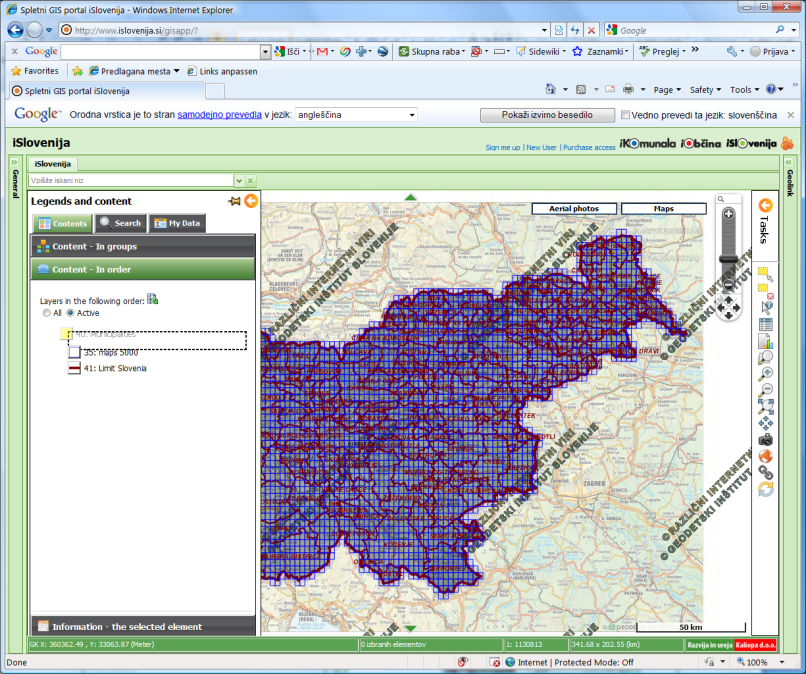

* Ability to change Layers drawing order (drag & drop layers to define layer drawing order).

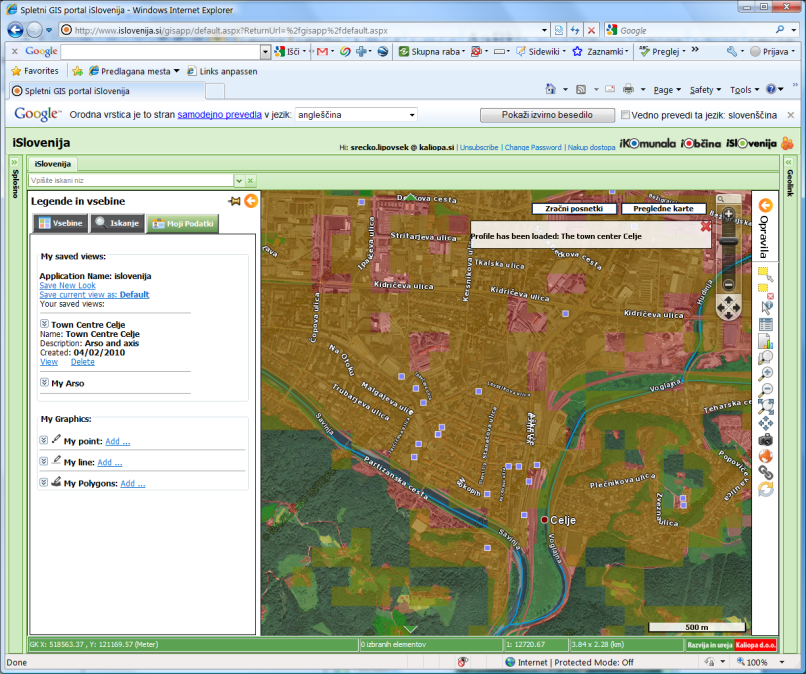

Save user profiles (for logged in users). Profile is a group of visible layers, visible groups and current view. User can make multiple profiles and anytime can switch between them.

Info cursor – intersecting throught all visible layers in map.

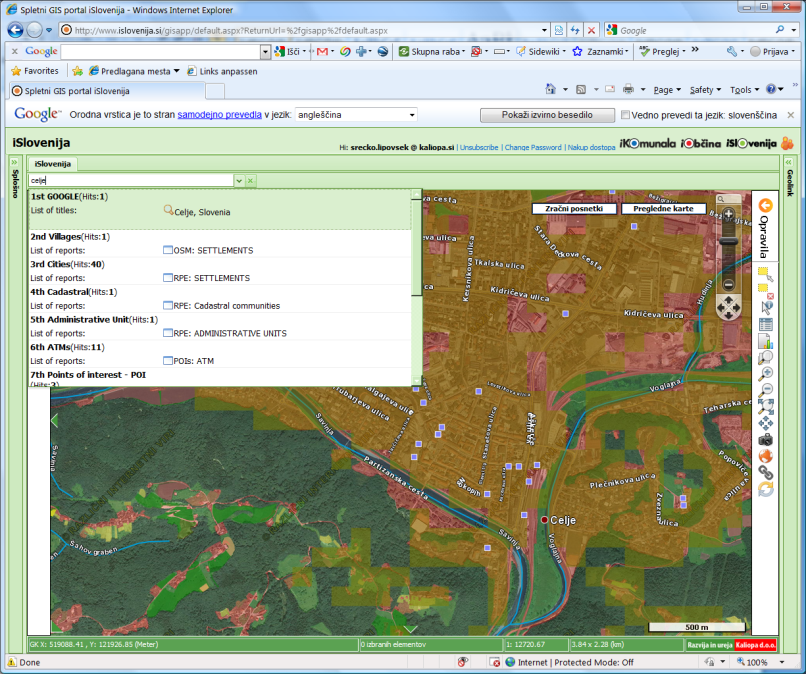

* Search service which also includes Local Search from Google.

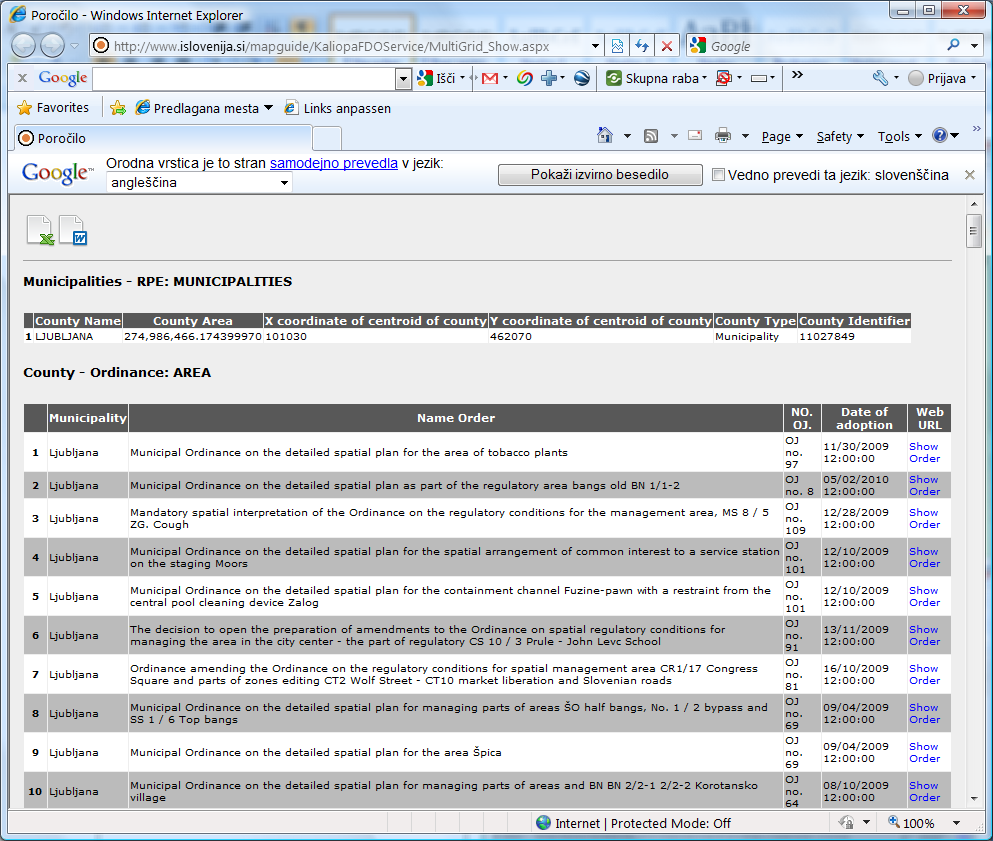

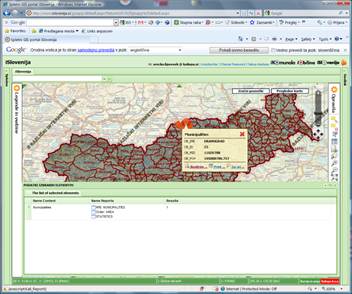

Custom Reports for Layers (showing also other data not just FDO properties). Implemented in Search and Select -> Report. Ability to use EXT Grid or show data in classic HTML Table …

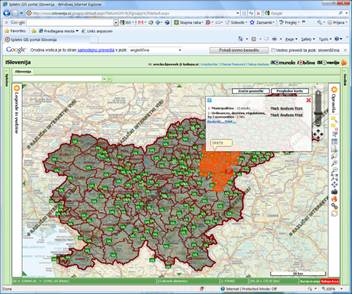

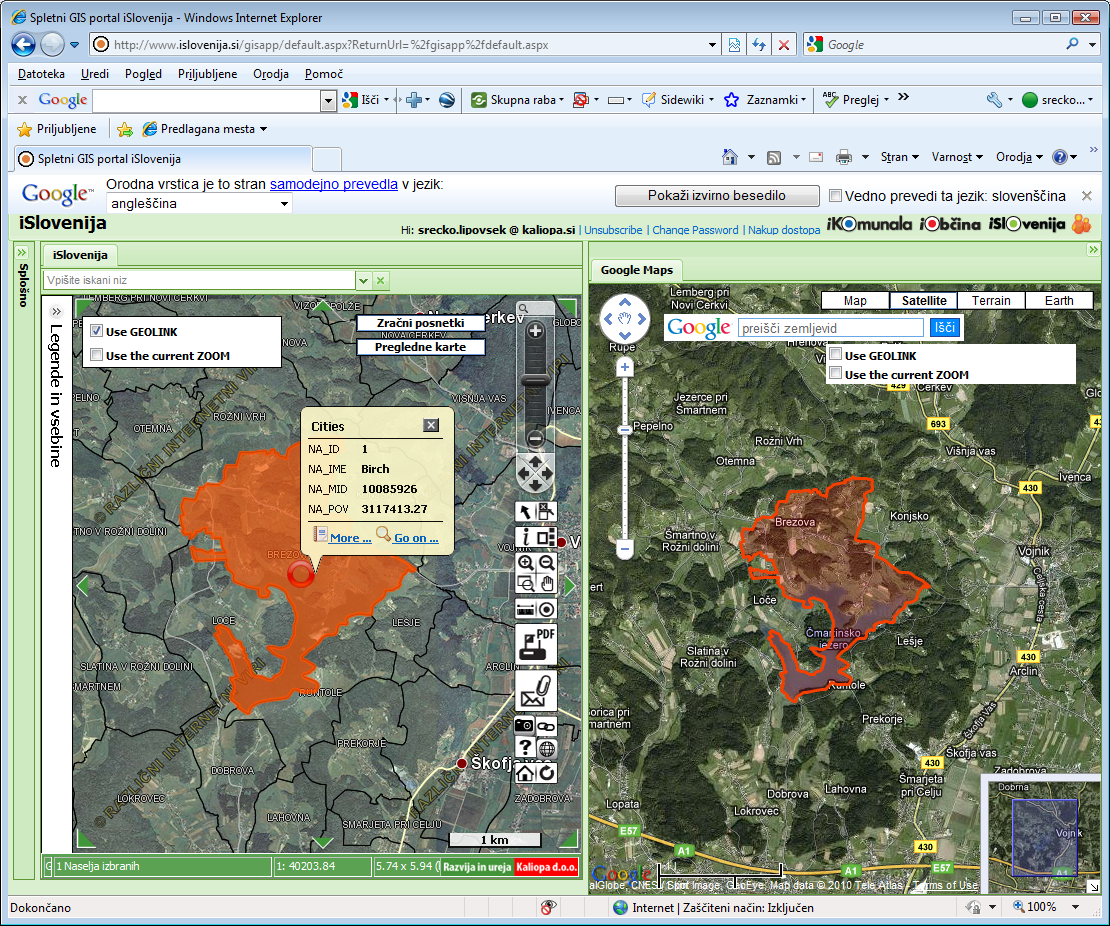

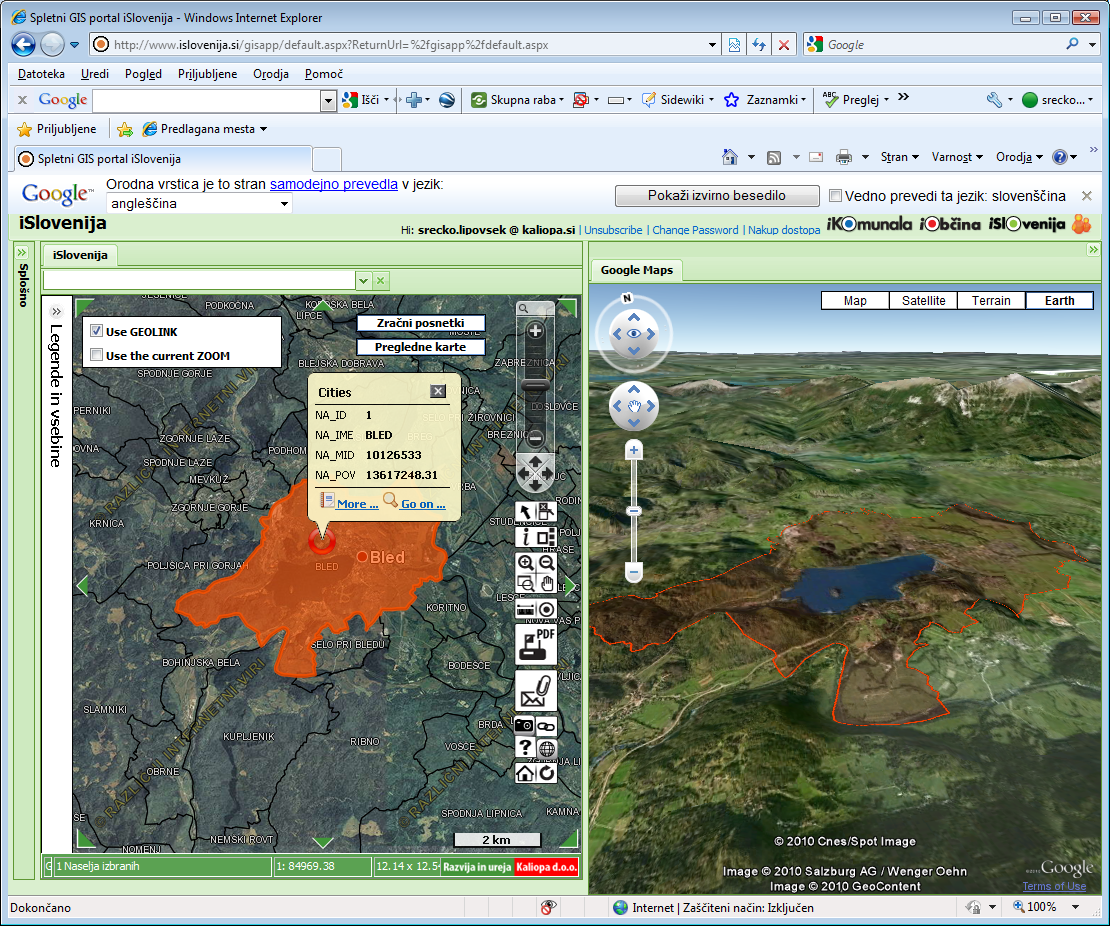

* Geolink with other GIS (Google, other portal or our other web portal http://www.iObcina.si based on Mapguide 6.5). Expand right vertical panel to see … then toggle on Use GEOLINK on which side you want to use it. It works in both directions. When in Mapguide window Geolink is toggled in, selection is also drawing in Google window. In Google window try to change to Google Earth and use altitude …, try search, … Some settings for GEOLINK are also in left panel under Geolink. There you can change in which side you want to see what.

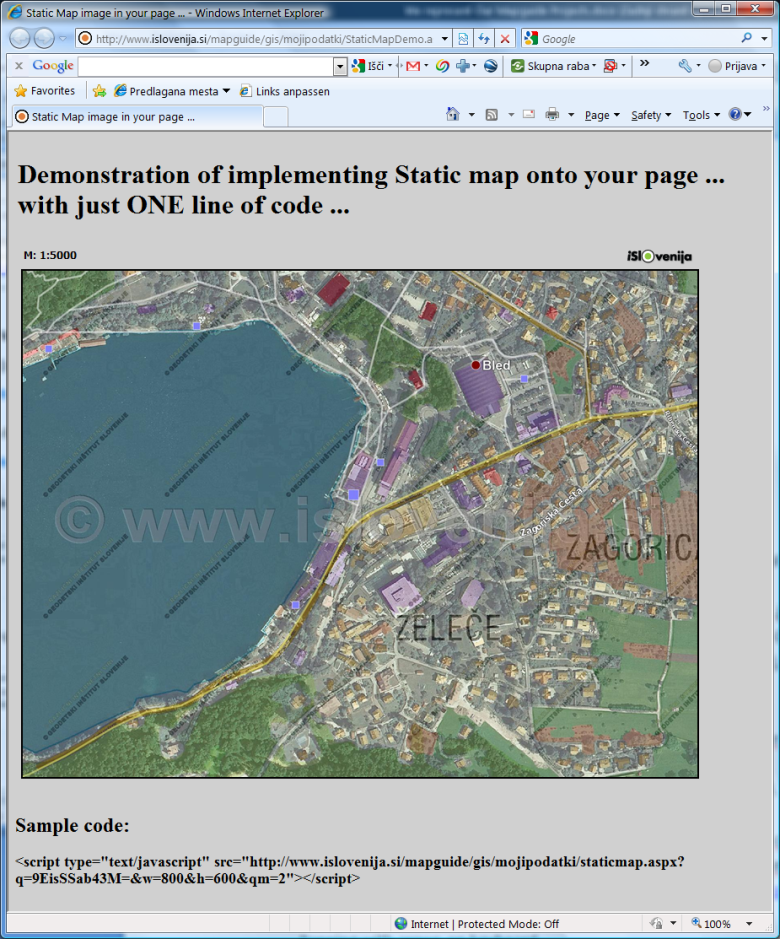

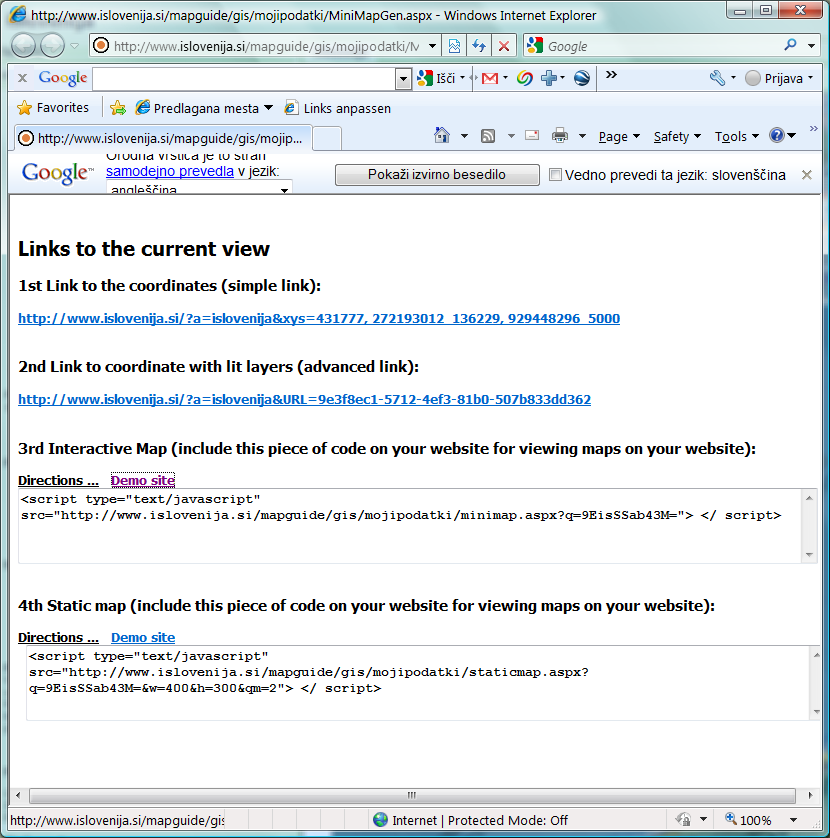

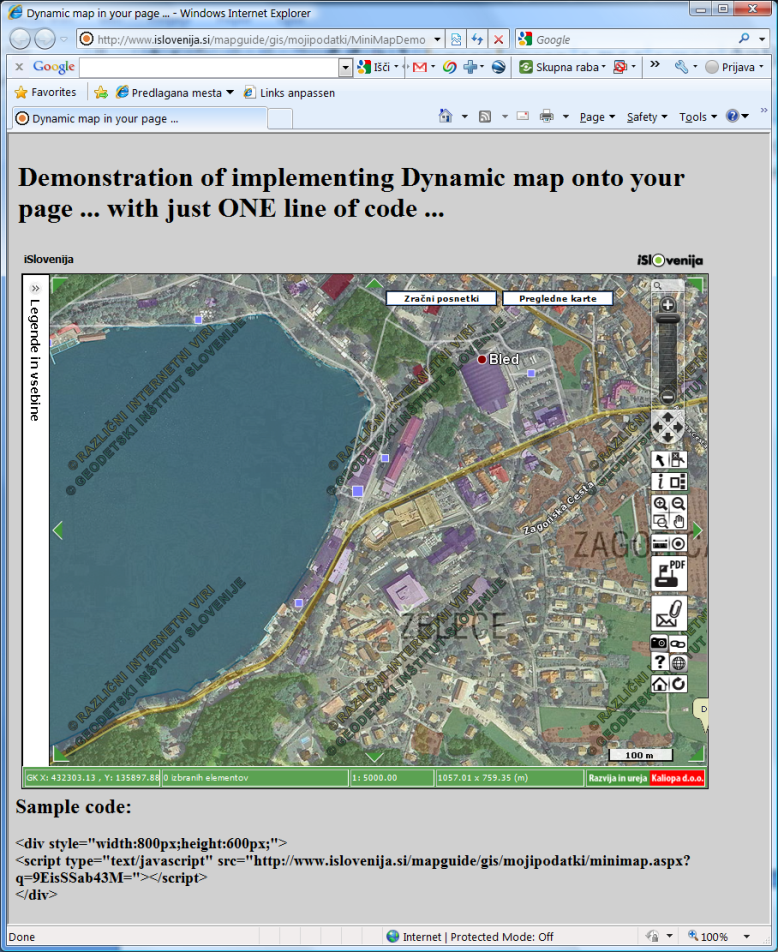

Generating smart URL to current view and current layers on. URL can be just link, DYNAMIC GIS or STATIC GIS image which can developers of any other web sites quickly insert in theirs pages.

Function Grab Display, which produce image from screen (WYSIWYG).

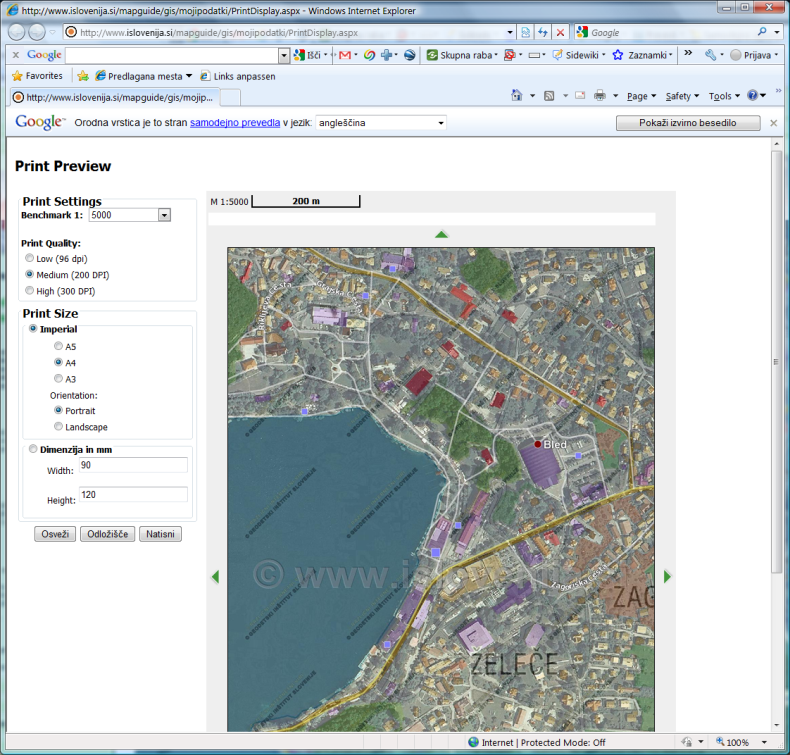

Improved function for printing.

* Sending current display image to email (with geolocation .pgw or .jgw, …)

We are also implementing technology called MONETA. Moneta is GSM paying system in our country. With Moneta users can Buy image (without watermarks), print image, or Buy Access to portal which will include also commercial layers.

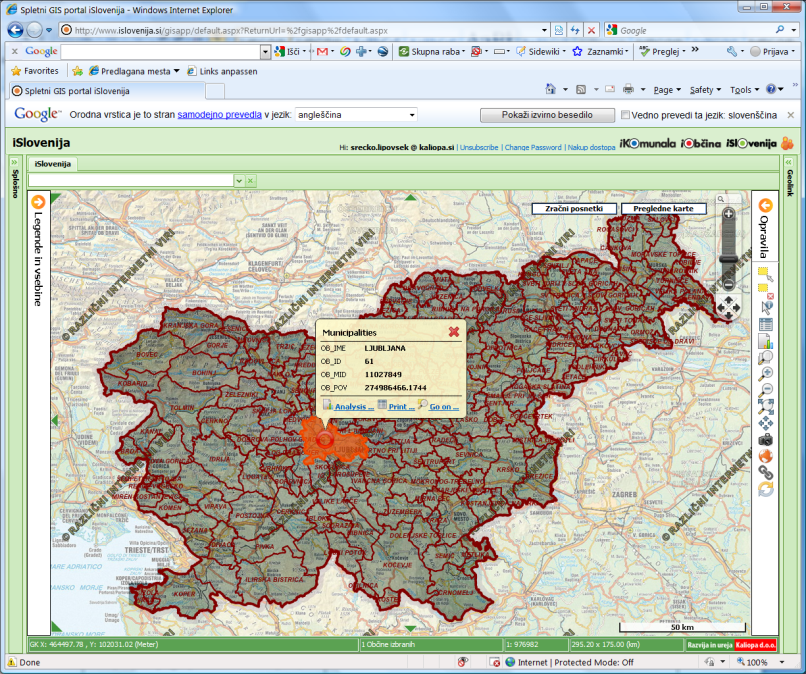

* Tooltip with properties when selecting in map.

* Cookie remember current view and all active layers when reload a project page (Session Cookie).

We are using very large amount of data all stored in MS SQL 2008. There is now almost 500++ layers from different databases.

There is for now 50++ web sub-projects for communities and some other companies (50++ MapDefinitions with different set of data). For now are public accessible only http://www.islovenija.si, http://gis.iobcina.si  and http://www.ikomunala.si
Others are accessible with username.

* Panning a map with arrows on keyboard.

* Zoom In with keyboard +, Zoom Out with keyboard –.

* Map Scale-line.

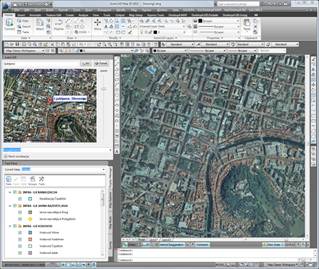

Find location inside AutoCAD with Google

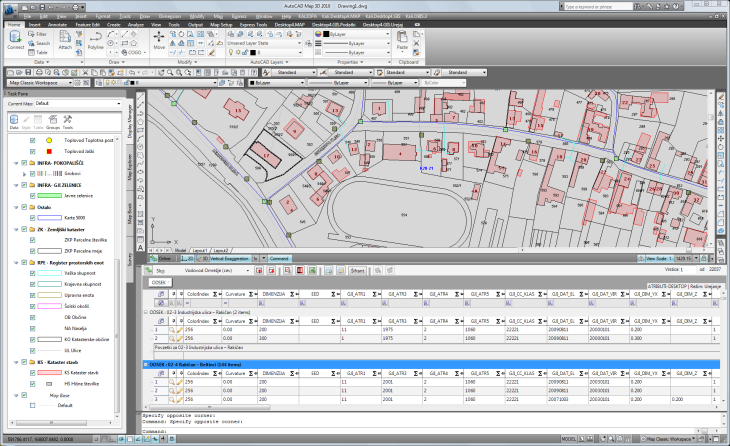

Publish Mapguide data and style’s to AutoCAD Map over SQLLite file.
Result in AutoCAD Map look’s like a Mapguide WEB project.

Copy Maguide Layer Styles to AutoCAD  Map Layer Styles

Copy AutoCAD Layer Styles to Mapguide Layer Styles
